IGBT Rectifier

Name: IGBT Rectifier
Brand: Patson Rectifier System
Price: 100000.0 INR
Availability: InStock

100000.0 INR/Number

Get a Price/Quote

Product Details:

Product Type IGBT Rectifier
Application Industrial DC power supply, Electroplating, Anodizing, Metal finishing
Input Voltage 415V AC
Output Frequency 50 Hz
Output Current 397A (as per panel display)
Output Voltage 0V (as per panel display), adjustable (system capable)
Modular Yes
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

IGBT Rectifier Price And Quantity

Price 100000.0 INR/Number
Minimum Order Quantity 1 Number

IGBT Rectifier Product Specifications

Weight Approx. 180-250 kg (estimated as per enclosure)
Input Voltage 415V AC
Product Type IGBT Rectifier
Output Voltage 0V (as per panel display), adjustable (system capable)
Modular Yes
Color Grey
Output Current 397A (as per panel display)
Interface Type HMI Digital Display and Controls
Output Frequency 50 Hz

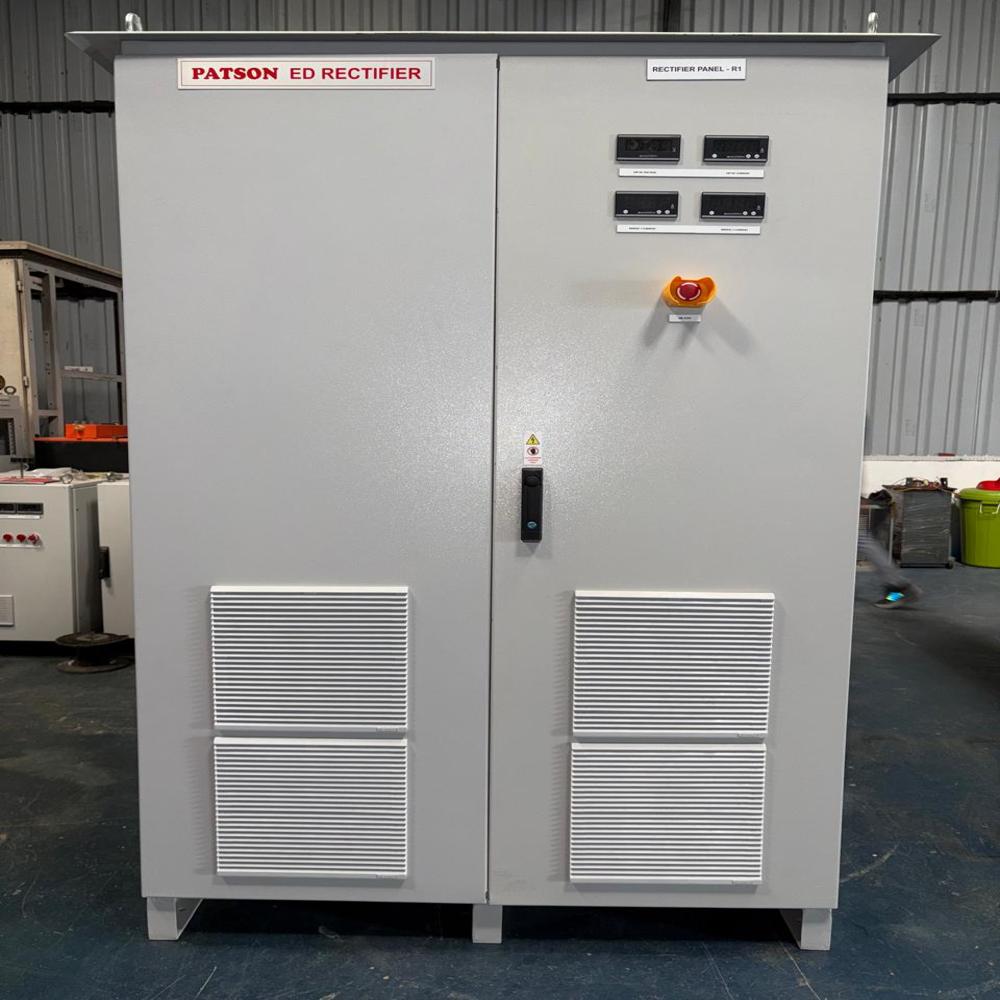

Size Large enclosed cabinet
Application Industrial DC power supply, Electroplating, Anodizing, Metal finishing
Operation Type Automatic/Manual (with key selection)
Dimension (L*W*H) Approx. 1800x900x700 mm (estimated from image)

Technology IGBT (Insulated Gate Bipolar Transistor) based rectification
Enclosure Protection IP42 (estimated as per indoor use and design)

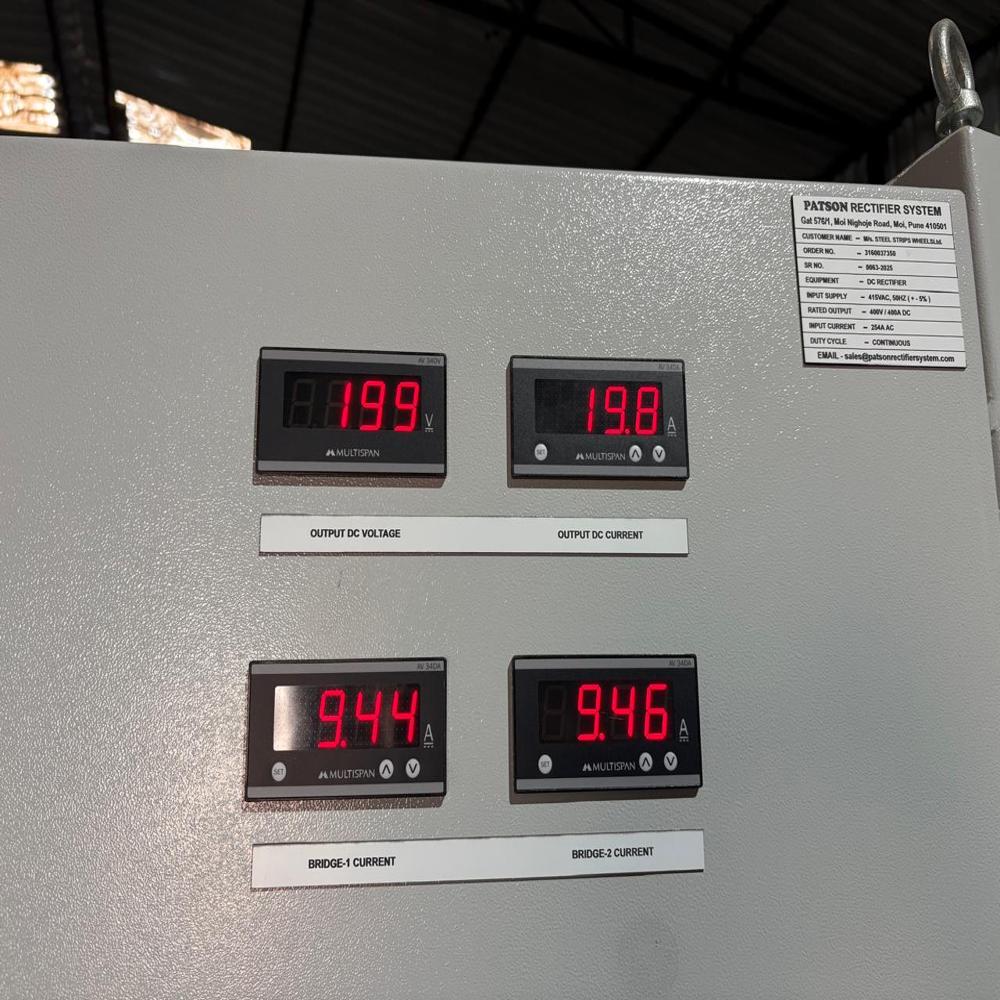

Bridge Current Monitors Yes, separate digital displays
Input Phase Three phase AC input
Mounting Type Floor mount
Remote Control Option Available
Rectification Type Controlled Rectifier
Cooling Method Air cooled (cabinet with ventilation)
Safety Features Overcurrent, overvoltage, fuse fault, system trips

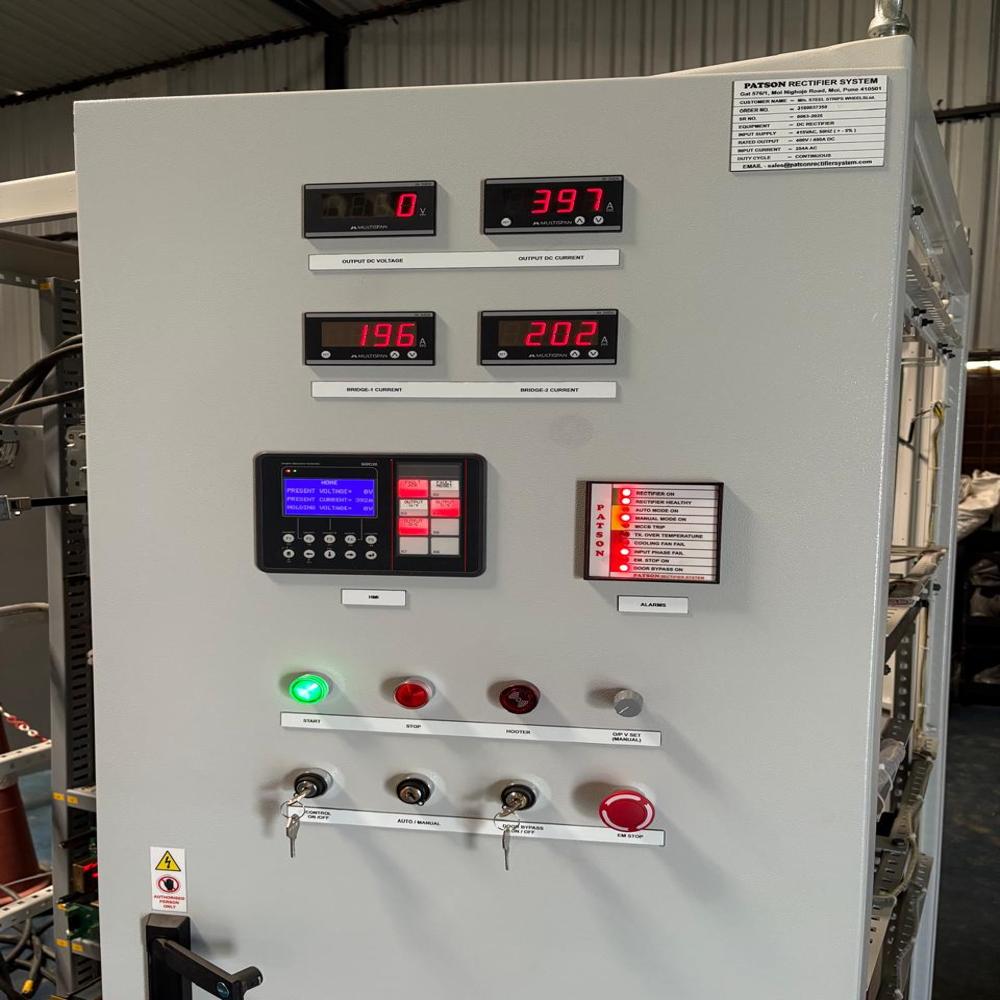

Control Panel Interface Membrane keypad, digital monitoring, emergency stop
Alarm Indicators Yes, visual LED alarms for system faults

Product Description

Experience a spectacular bargain with our state-of-the-art IGBT Rectifier, famed for its reliability and wondrous efficiency. Take full advantage and utilise this offer to access robust performance, thanks to air-cooled ventilation and a large floor-mounted cabinet. Digital bridge current monitors and clear visual LED alarms keep you informed of system status, ensuring industrial safety through overcurrent and overvoltage protection. With both automatic and manual controls, modular design, and remote access, this rectifier is the ideal solution for electroplating, anodizing, and metal finishing applications.

Versatile Application and Usage

The IGBT Rectifier is tailored for diverse industrial applications, including DC power supply, electrolytic plating, anodizing, and comprehensive metal finishing processes. Renowned for its adaptability, this device excels in environments such as manufacturing plants, metal finishing workshops, and industrial service centers. Its advanced technology and reliable operation make it indispensable in facilities seeking consistent and precision-controlled power delivery for critical industrial media and usage scenarios.

Main Domestic Market, Certification, and Logistic Policies

Our IGBT Rectifier is extensively distributed throughout major domestic markets, supported by reliable packaging and efficient goods transport to ensure protected delivery. We uphold stringent sample policies and provide detailed certification of compliance with industrial safety and quality standards. Well-coordinated logistics and systematic delivery channels guarantee timely arrival of each unit, reinforcing trust among clients in both our service and the enduring quality of our delivered equipment.

FAQ's of IGBT Rectifier:

Q: How does the IGBT rectifier ensure operational safety?

A: The IGBT rectifier features comprehensive safety mechanisms, such as overcurrent, overvoltage, and fuse fault protection, with automatic system trips and visual LED alarm indicators for immediate fault diagnosis.

Q: What makes this rectifier suitable for industrial applications?

A: Its robust air-cooled design, digital monitoring, modular construction, and compatibility with automatic/manual control render it ideal for processes like electroplating, anodizing, and metal finishing.

Q: Where can the IGBT rectifier be installed?

A: The unit is designed for indoor, floor-mounted installation in industrial settings such as manufacturing plants and service workshops, with IP42 enclosure protection ensuring safe operation.

Q: What is the process for controlling and monitoring the system?

A: Operators can use the HMI digital display and controls, membrane keypad, and digital bridge current monitors for real-time management. Remote control access further enhances monitoring efficiency.

Q: When should emergency stop be used?

A: The emergency stop function should be activated immediately if a critical fault or hazardous event is detected, ensuring instant power-off and user safety.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'CED Coating Rectifier Panel' category

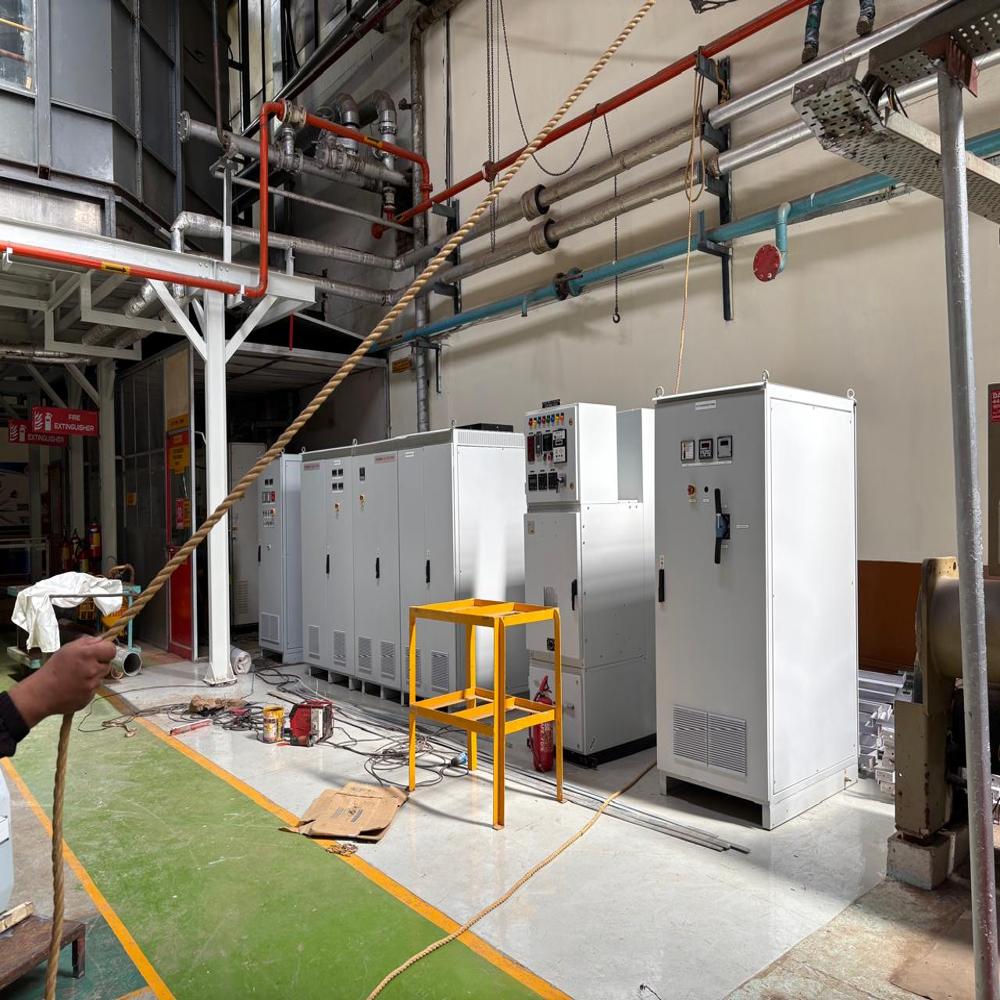

IGBT Based Modular rectifier Panel Price : 100000.0 INR/Number Minimum Order Quantity : 1 Output Voltage : 24V/48V/110V/220V DC (Available in various DC output voltages) Input Voltage : 415V AC (Customizable as per requirements) Modular : Yes, modular construction for expandability and ease of maintenance Output Current : Up to 1000A or higher (scalable by module) Output Frequency : 50Hz/60Hz Application : Industrial power supply systems, battery charging, electroplating, power plants, and uninterrupted power sources
